Asano 13mm Purse Shackle – Stainless Steel
Asano Purse Shackles are high-quality shackles made in Japan from SUS316 stainless steel. Originally designed for use with blocks and tackles in the commercial fishing industry, their applications extend well beyond that, making them an excellent general-purpose stainless steel shackle. Each Asano Purse Shackle is tested. What sets these shackles apart from most is the inclusion of a circlip on the end of the pin, which helps prevent the shackle from coming loose during use.

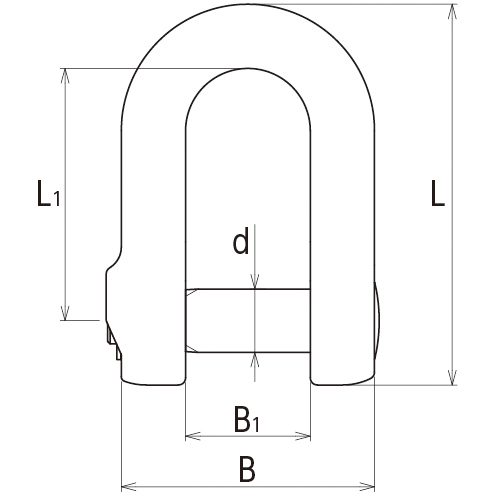

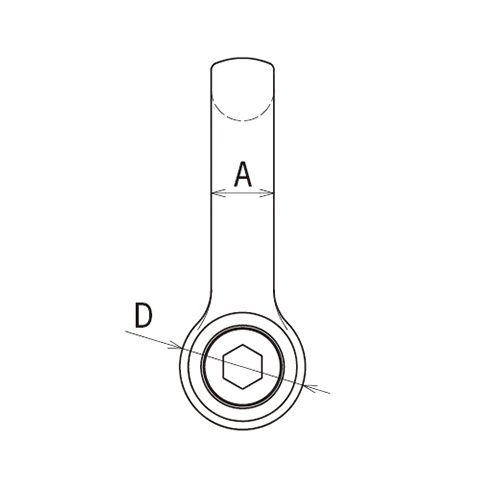

Specifications of Asano 13mm Purse Shackle – Stainless Steel
| Size | 13mm |
|---|---|
| d | 13mm |
| L | 78mm |
| L1 | 52mm |
| A | 13mm |
| B | 52mm |
| B1 | 26mm |
| D | 26mm |
| Weight | 0.275kg |
| Working Load Limit | 2,600kg |
| Break Load | 10,400kg |
